Brief introduction of unit configuration and performance

This machine is a special equipment for the production of cold-rolled ribbed steel bars

with two, the production line can be 6.5 Phi Phi 14mm Q235 hot rolled coil, cold rolled

steel (Figure 1) made of two crescent ribbed bar (Figure 2).

 Figure 1 Figure 2 with two round steel

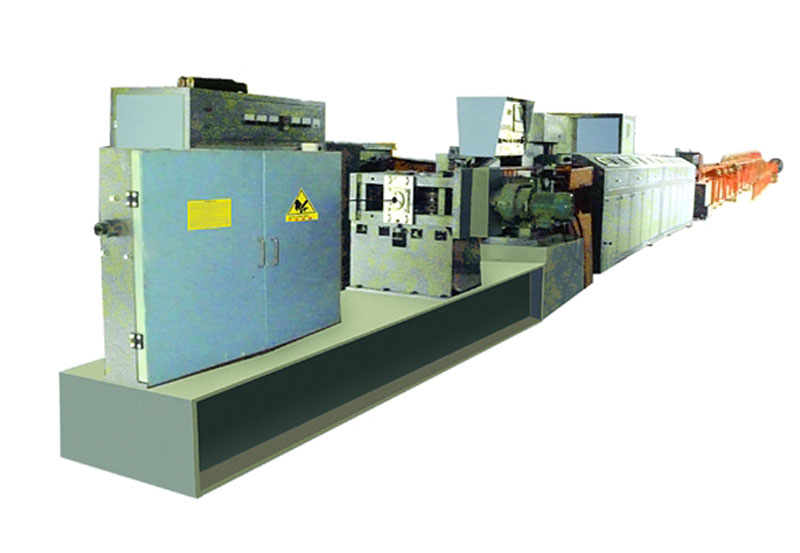

 The complete set of equipment is composed of wire laying frame, whole wire cage, descaling

machine, rolling mill, main mill, straightening, heating, temperature measuring, shearing,

slideway, two side material receiving, pneumatic automatic pushing and take-up machine. The

unit is designed according to the continuous working system, and the whole set of equipment

is controlled by PLC system.

 Here is a brief description of the structure and properties of each component:

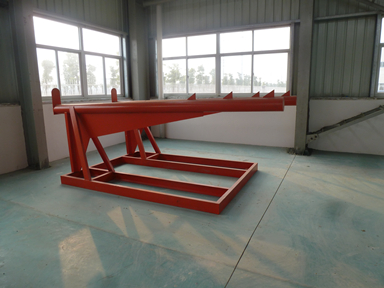

 (1) the function of the release frame is to ensure the high speed operation of the unit. It

consists of double discharge gun pipes, one is a work rack, the other is a storage rack, and

when one is in the line, the other barrel can be pre assembled. When working on the shelf

after the end of the coil, the coil coil and the other end welding rack hanging round

grinding, can continue to boot, then on another line to be pre frame material, this material

can be improved by pre design to reduce the work efficiency after stop charging.）。

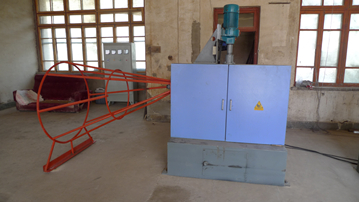

 (2) whole wire cage, electric top and bottom descaling machine;

 The whole wire cage is welded by the threaded steel, and the funnel shape can change the

steel bar from the annular to the spiral straight strip, so as to ensure that the steel bar

enters the descaling machine before the descaling machine is basically straight and ensures

the high-speed and reliable operation of the machine.

 Dustproof descaling machine consists of 5 blocks, the main function is the hot rolled coil

through the 5 round of descaling repeated bending surface oxide skin peeling, improve the

surface quality of steel, to reduce the effect on roll wear. The base plate is welded, such

as saving space, and can be mounted on a base with the mainframe.

 (3) pay mill (see above)

 The reinforcing bar is rolled and flattened by the rolling mill, and the main rolling mill

is prepared by rolling the thread, and the mill is made as a passive rolling mill.

 (4) main mill

 The main rolling mill is the last process of forming the thread steel. The rolling mill has

large force, and requires the high precision of the rolling mill and the following

advantages of the rolling mill:

 1, center adjustment, (domestic unique) size of old and new roll, rolling center do not

tune.

 2. The roller has a long service life and can be rolled up to over 10000 tons at one time.

 3, roll replacement is convenient, (domestic unique) slideway, drawer type replacement, 10

minutes to fix.

 4 、 automatic cooling system of main mill (unique in China).

 5, a high degree of automation, (domestic unique) fully automatic concentric, for steel

import and export without adjustment, the world's leading technology.

 6, the integration of high-precision guidance, (domestic unique) up and down around, a

guide can be achieved.

 Computer numerical control automatic butter 7, unique to the system, the workers do not

timely solve the oil bearing damage (domestic only).

 (5) console

 The only console to mill, heating, blanking, cutting, feeding, and push down steel swing,

concentrated in a panel, truly integrated centralized control, to control the head on the

mill, do not account for the workshop position, can install more equipment in the limited

plant, using PLC program control system, touch screen display, can improve the stability of

equipment operation and intuitive display fault location through the touch screen.

 Note: This equipment adopts infrared non-contact temperature measuring method, fiber

transmission, anti-interference ability, digital display temperature.

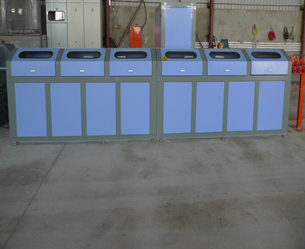

 (6) heating cabinet (see general drawing above)

 The biggest cost of operation of this set of equipment is electricity heating equipment,

steel is directly reflected in the consumption index, using high performance medium or super

audio heating equipment, can save 20 to 50 degrees / tons of electricity, require the use of

high performance RGBT module, power conversion efficiency, heating equipment, safe and

reliable operation, green environmental protection.

 (7) shearing

 Shearing adopts the flying shear developed by our factory. The shearing power is small, the

reaction is fast, the failure rate is low, maintenance free. After many years of

improvement, the technology is very mature and has the industry leading level.

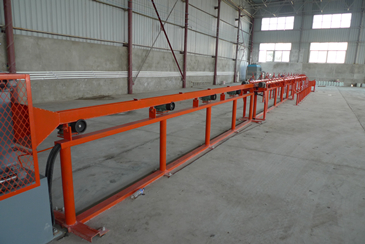

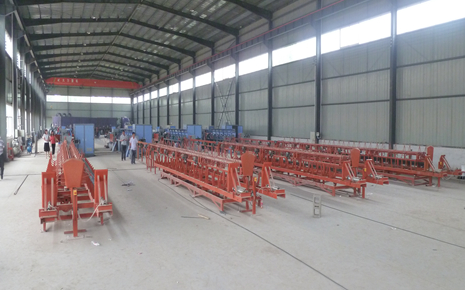

 (8) double flip and blanking system;

 The system adopts the double cycle operation mode of (A, B, A), which can set parameters

separately, assemble the materials separately, and meet the demand of non stop baling.

 Double feed rack (left and right) feed is a way to reduce downtime, bind and improve

production efficiency. After the steel bar is cut off, it falls from the tipping board and

is stored in the U type material receiving device, which is a reliable method for collecting

materials.

 (9) leveling device (various pushing flat)

 The steel bars fall into the aggregate rack, the length is not uniform, and they need to be

pushed flat. I design a pneumatic automatic flat pushing device, which can replace manual

pushing to eliminate unsafe hidden trouble, and how many roots can be pushed once.

   Compared with the twin power cold rolling ribbed steel bar production unit, the single

power and the dual power have the disadvantages of two units:

 1 、 butt welding is not firm and easy to break;

 2, every time there is a strip of 10~20 meters of waste materials;

 3, the roller is too large, easy to damage.

Product name	Company	Cold rolled two ribbed reinforced bar units	Cold rolled two ribbed reinforced bar units	Cold rolled two ribbed reinforced bar units	Cold rolled two ribbed reinforced bar units	Cold rolled two ribbed reinforced bar units	Cold rolled two ribbed reinforced bar units
Model		LMD10-9A	LMD12-10B	LMD12-10C	LMS12-10A	LMS12-10B	LMS16-14C
Diameter of base metal	mm	φ6-10	φ6-12	φ6-12	φ6-12	φ6-12	φ6-14
Diameter of finished product	mm	φ5-9	φ5-11	φ5-11	φ5-11	φ5-11	φ5-13
Roll line speed	m/min	120	150	180	150	180	200
Predetermined length	m	1～99	1～99	1～99	1～99	1～99	1～99
Length of chute	m	6～12	6～12	6～12	6～12	6～12	6～12
Blanking direction		Single direction blanking	Double blanking	Double blanking	Double blanking	Double blanking	Double blanking
Blanking sliding mode		360°rotate	360°rotate	360°rotate	360°rotate	360°rotate	360°rotate
Row spacing	mm	Accessories 5~20
Two times aggregate length	m	Matching length 6~12
Aggregate flattening method		Pneumatic automatic flat pushing
Adjust speed		Adjust speed	frequency conversion	frequency conversion	Frequency conversion	Frequency conversion	Frequency conversion
control mode		text＋PLC	text＋PLC	Touch screen＋PLC	Touch screen＋PLC	Touch screen＋PLC	Touch screen＋PLC
Cutting error	mm	±4	±2	±2	±2	±2	±2
Host power	KW	75KW	90KW	132KW	75KW＋90KW	90KW＋110KW	110KW＋132KW
heating power	KW	300	400（500）	500（600）	500	600	800
Total power	KW	400	500	650	670	800	1050
Total weight (approx.)	Kg	6000	8000	14000	9000	16000	20000
Work area (including line release, minimum)	Length * width（m）	40×5×6	50×5×6	50×5×6	50×5×6	55×5×6	70×5×6
Stringing frame		Dual set
Line regulator		Accessories
rolling mill		Up sync compression	Electric automatic tuning	Electric automatic tuning	Electric automatic centering	Electric automatic centering	Electric automatic centering
Rolling times		2	2	2	2	2	2
Roll size	mm	Active millφ228 +Passive millφ155	Active mill228＋Passive millφ210	Active millφ228+Passive millφ210	Active millφ228＋Active millφ210	Active millφ228＋Active millφ210	Main millφ228＋Active millφ210
Straightening method		On line bar	On line bar	On line bar	On line bar	On line bar	On line bar
Take-up		Accessories
Φ6mReinforcement yield	Kg	1598kg/h	2000kg/h	2398kg/h	2000kg/h	2398kg/h	2660kg/h
Φ7mmReinforcement quantity	Kg	2170kg /h	2700Kg/h	3250kg/h	2700 kg/h	3250Kg/h	3620 kg/h
Φ8mReinforcement yield	Kg	2800kg /h	3555kg/h	4200kg/h	3555 kg/h	4200kg/h	4728 kg/h
Φ9mReinforcement yield	Kg	3500kg /h	4400Kg/h	5000kg/h	440Kg/h	5000kg/h	5988 kg/h
Φ10mmReinforcement quantity	Kg		5000kg/h	5500kg/h	5000kg/h	5500kg/h	6000 kg/h
Φ11mmReinforcement quantity	Kg		5500kg/h	6000kg/h	5500 kg/h	6000kg/h	7500 kg/h
Φ12mmReinforcement quantity	Kg						7000 kg/h
Φ13mmReinforcement quantity	Kg						8000 kg/h
Φ14mmReinforcement quantity	Kg						7000 kg/h
Φ15mmReinforcement quantity	Kg						8000 kg/h
Complete set of operators	People / Unit	3	4	4	4	4	4
